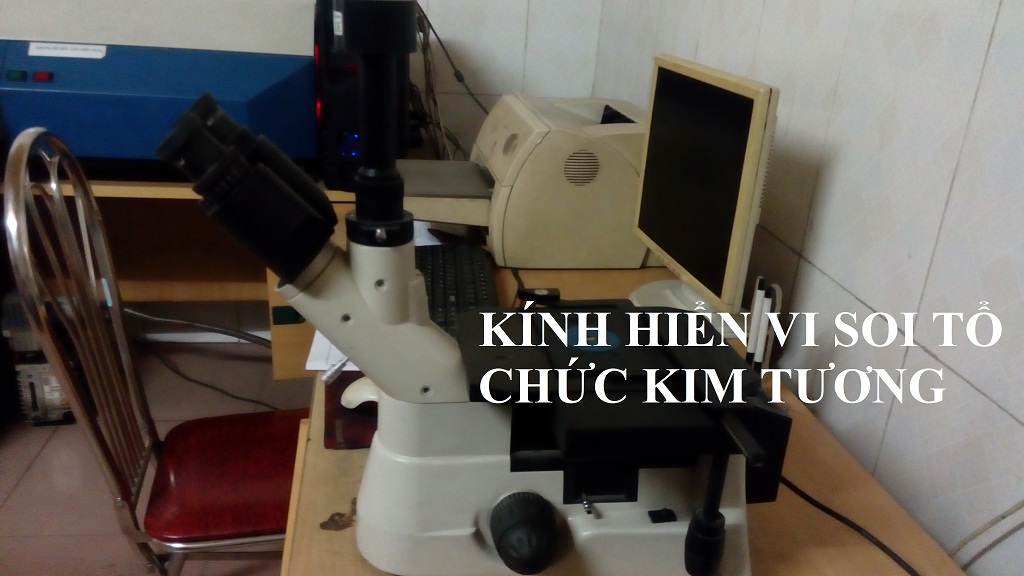

Metallographic microscope

  • Metallographic microscope is widely used in labs and industry. Used for identification and quality analysis of alloy steel and other metals.
  • Suitable for analysis of raw materials, allowing identification and quality control of metal textures after heat treatment
  • The optical system is compact, sturdy, easy to use, can be connected to the camera or video to transmit image data.
  • 1600x max magnification
  • Clear visuals.
  • Sample stand with displacement range: 204x204mm
  • Sample table size: 280x270mm.
  • Viewfinder: WF10X (Φ 22mm) and WF16X (Φ 20mm)
  • Objectives: 5X/0.12, 10X/0.25, 20X/0.40, 50X/0.70, 80X/0.80, 100X/1.25 (Spring, oil used)
  • Viewfinder: tilted 30 degrees.
  • Lighting system: 12V 50W, adjustable light intensity
  • Light filter: filter yellow, blue, green, filter background (Ground)
  • Alignment system: using the sample table to fine-tune and fine-tune, minimum resolution 2um.
  • Camera system
  • Camera type: CCD
  • Use memory card to store observed images
  • Adapter for camera
